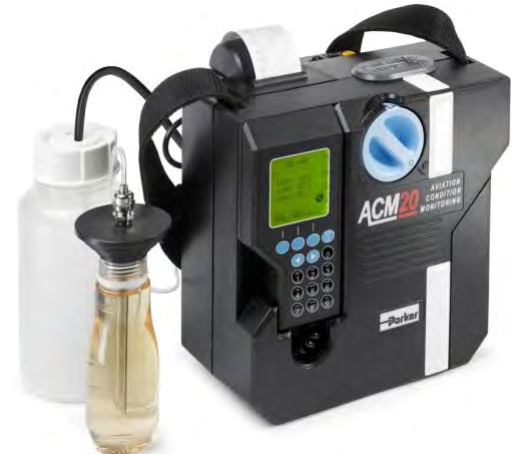

icountACM20 Fuel Particle Counter
Product Features Include:
- IcountACM20 monitors aviation fuel contamination to DEFSTAN 91-91 Issue 6 Jet A-1 fuel specifications.
- Energy Institute Test Method IP 564
- 2- minute test procedure
- On-biard, rear mounted pump expands monitoring possibilities
- Fully manufactured by Parker with 20 years experience in the Particle Counter Measuring market
- Laser optical scanning analysis
- Multi-standard ISO cleanliness reporting
- On-board, rear-mounted pump enables monitoring possibilities. For example: fuel storage / vehicle tanks and fuel storage drums
- Latest averaging software as standard
- Downloader software
Product Benefits:
Principle of Operation:
optical scanning analysis and measurement of actual particles and inference to water presence
Primary Output:
=4(c), =6(c), =14(c), =21(c), =25(c), =30(c) counts per ml
Secondary Diagnostic Output:
% Volume Distribution, via graphical display on handset and printout
International Codes:
ISO 7-22 in accordance with ISO 4406-1999
Data Entry:
32 character two line dot matrix LCD. Full alpha numeric entry facility on keypad Data Retrieval: memory access gives test search facility for up to 300 saved tests
Calibration:
in accordance with Parker Calibration Procedure CM20-N, which complies to ISO11171-1999, Clause 6 (Ommitting Annex F)
Re-calibration:
Every 12 months by a dedicated Parker Service Centre (Consult Parker) as required under strict El methods Laboratory Sampling: Utilises on-board rear mounted pump
